Paguro 5.5 SY Marine Generator
£6,695.00 Excl. VAT
Sale price
£6,695.00 Excl. VAT
Regular price
Skip to product information

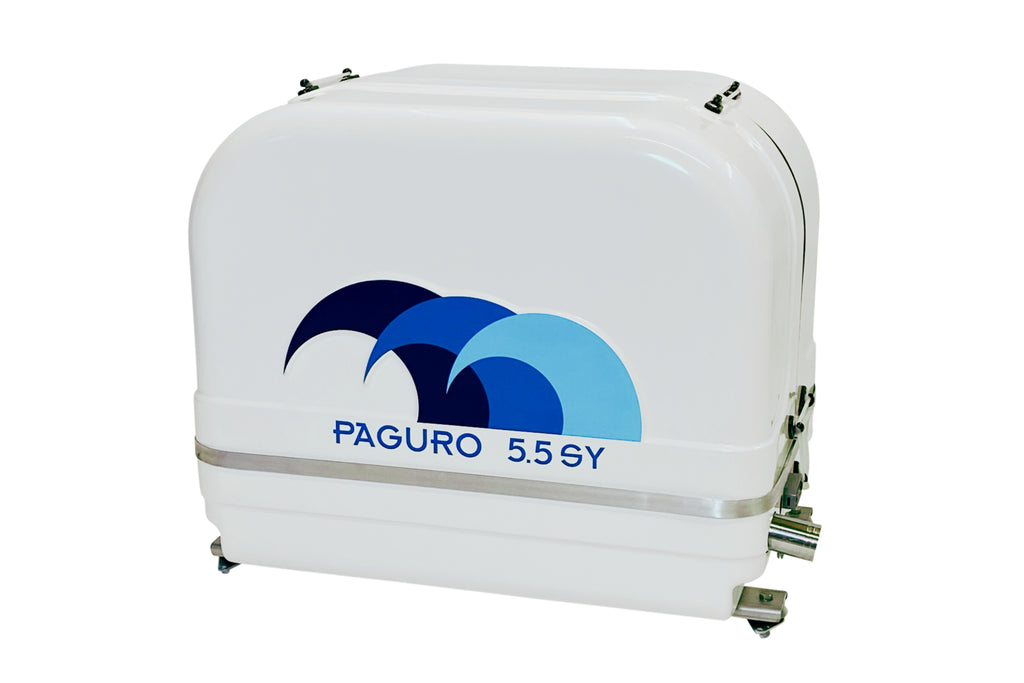

Paguro 5.5 SY Marine Generator
101-0111
£6,695.00 Excl. VAT
Sale price
£6,695.00 Excl. VAT
Regular price
Shipping calculated at checkout.
Available to order — current lead time: 3 weeks
Lighter than generators of comparable power at only 110kg
Quiet running at only 53db(A) @ 7m
Fuel efficient with low emissions, STAGE V emission compliant
Popular with boats in the 45 – 50’ range
Plenty of capacity to run all the usual mains equipment on board - at the same time
Can power multiple air conditioning units, a large watermaker or an electric oven and hob.
Digital control panel, with power load meter and safety shutdown warnings
Sheet 01 — Specification
Specifications
| Peak Power | 13.8 kVA |
|---|---|
| Continuous Power | 5.0 kVA |
| Voltage / Frequency | 230V @ 50Hz |
| Engine | YANMAR L100 |
| Engine Speed | 3000 rpm |
| Fuel | Diesel |
| Noise Level | 53 dB(A) @ 7m |
| Weight | 110 kg |
| Dimensions | 660 × 470 × 570 mm (L × W × H) |
| Included in the Box | Sound Capsule, Remote Panel & Harness, Ext Anti-Vibe Mounts, Tool Kit, Manual |
| Warranty | 5 year warranty exclusive to leisure customers of Advance Yacht. Full details available on request. |
Sheet 02 — Warranty
Superior Warranty

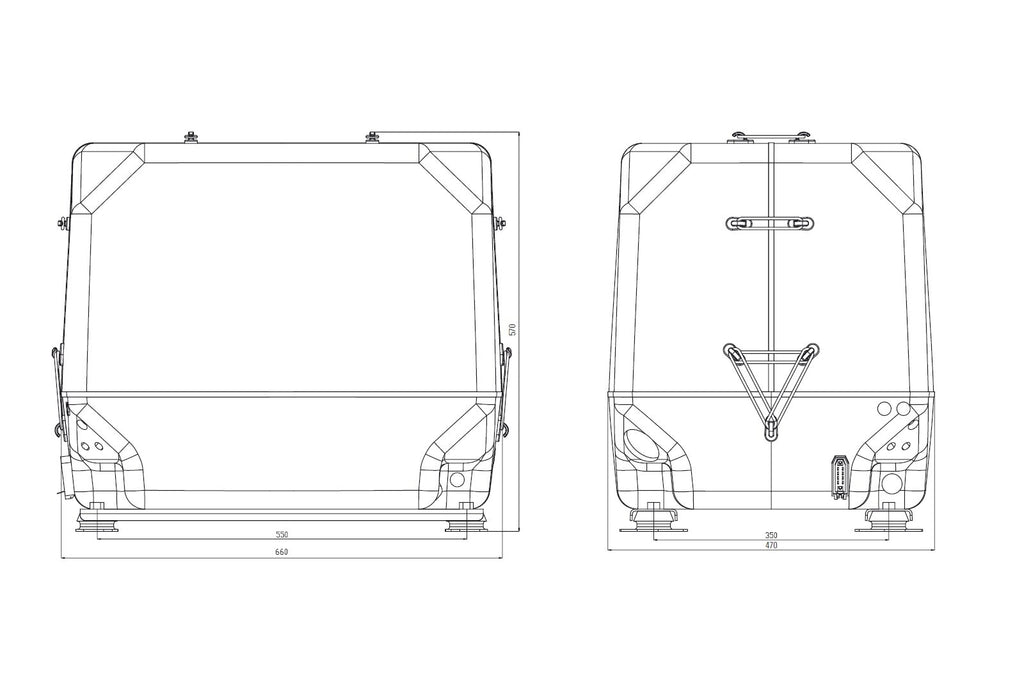

Click to enlarge dimensions
Sheet 03 — Powertrain
Powered By YANMAR
The Paguro 5.5 SY is a new design that combines Paguro’s proven generator technology with the world renowned YANMAR engine to deliver an on board power solution that is simple to use and maintain, whilst providing ultimate reliability in the marine environment. The popularity of the YANMAR & Paguro brands around the globe ensures that wherever you are in the world, you won’t be far away from spares and servicing support, giving you the freedom to cruise with peace of mind.
Perfect Size For
45–50 Feet
Sailing Yachts, Motor Yachts & Catamarans
What You Can Power
Dessalator D100 Cruise Watermaker
Frigomar SCU07, SCU10 & SCU16 Air Conditioning
Pairs Perfectly With
Cristec YPOWER+ 12-60 or HPOWER 12-90 Battery Charger
Sheet 04 — Installation
Installation Kits
We also supply comprehensive installation kits, put together using the same high quality parts we use in our professional marine installations. Each system group of parts is individually packed and labelled to make it easy; just open the box and begin!
How Will You Install Your System?
Whether you prefer a hands-off professional installation or plan to manage the fit-out yourself, we are here to support you every step of the way.
Approved Installation Partners
We work with a trusted network of professional marine engineers across the UK, Channel Islands, and Gibraltar. Visit our Approved Dealers & Installers page to find an installer near you.
Self-Installation & Independent Engineers
Tackling the project yourself or using your preferred engineer? You are never on your own. Our dedicated in-house technical team is just a phone call or email away, ready to provide expert advice and troubleshooting support during your installation and well beyond.
Sheet 05 — Performance
The Paguro Difference
01Powerful
With a start load capability of 60A, the Paguro 5.5 SY is great for starting power hungry equipment such as start/stop air conditioning units, a large watermaker and more.
02Enjoy the Convenience
With the convenience of power on demand, you can keep your phones, tablets and laptops fully charged as well as enjoy all those other creature comforts on board, be it a coffee machine, hair drier or power tools.
03Independence
With a Paguro 5.5 SY on board you can enjoy the full potential of your yacht. With much more power than a typical shore power connection, you’ll have the freedom to explore in comfort and safety.
04Peace & Quiet

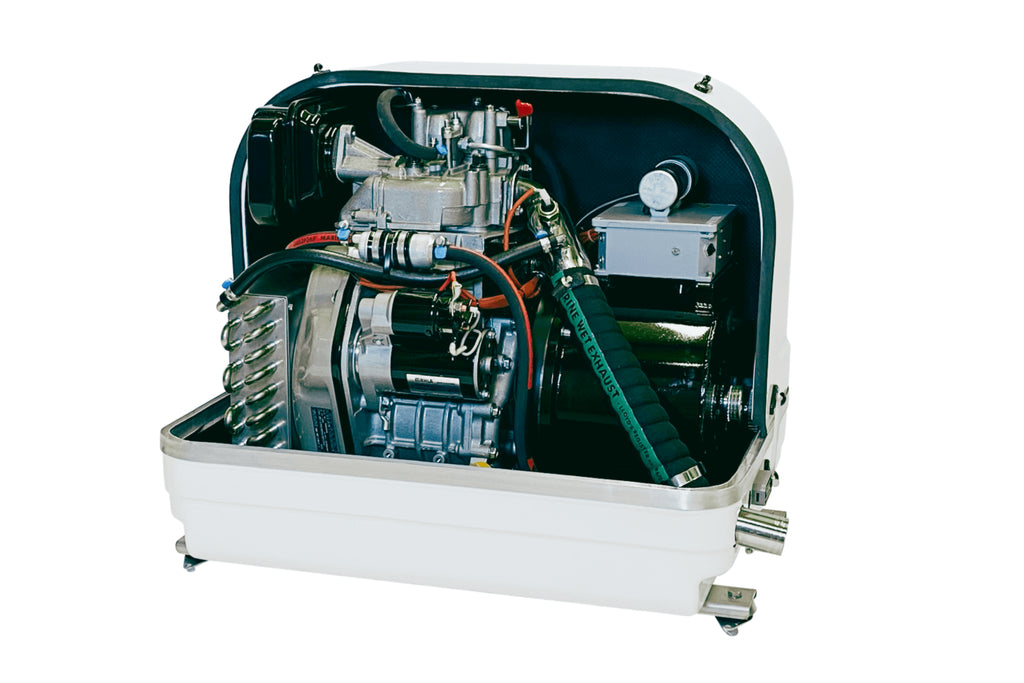

Designed by one of the pioneers of encapsulated generator technology, the Paguro 5.5 SY is cocooned in a 4-stage soundproof capsule, keeping noise as low as possible. Advanced anti-vibration feet both internally and externally ensure that noise transmitted by vibration is kept to a minimum, resulting in a smooth running generator.
Sheet 06 — Ownership
Simple Ownership
Easy to Operate
Your Paguro comes complete with an easy to read remote control panel with power monitor and 15m cable.
Low Cost of Ownership
Designed for ease of maintenance and single side servicing, with an oil change hand pump for clean and easy oil changes. It also has the added bonus of longer service intervals than comparable generators.
Sheet 07 — The Manufacturer
Volpi Tecno Energia
Manufactured by Volpi Tecno Energia, the Paguro brand is one of the longest established compact marine generators and is a well known firm favourite around the world. VTE focus on producing quiet, compact marine diesel generators that are durable in the marine environment and are easy to operate and maintain. The factory is located in Udine in northeast Italy near Trieste, home to the Barcolana Sail Race, a spectacular annual race that is the largest sailing event in Europe.
Sheet 08 — Global Support
Global Support
With distributors located in 74 countries world-wide, Paguro generators offer industry leading global support
UK Support
Our team here at Advance Yacht Systems have built a comprehensive knowledge base covering all aspects of the Paguro generator range, enabling us to deliver unrivalled technical support to our customers. Our commitment to providing industry leading support is backed up by us being voted British Marine Electrical & Electronics Dealer of the Year by our customers. We also offer the largest range of generator spares of any UK marine generator distributor, available to buy online for delivery to over 50 countries worldwide.
