Frigomar SCU16VFD AC
230V/50-60Hz
£4,145.00 Excl. VAT
Sale price
£4,145.00 Excl. VAT
Regular price
Skip to product information
Frigomar SCU16VFD AC
121-1007
£4,145.00 Excl. VAT
Sale price
£4,145.00 Excl. VAT
Regular price
3 in stock
Free UK delivery on orders over £100
Order before 1pm for same-day dispatch
View delivery informationPickup available at Advance Yacht Systems - Romsey
Usually ready in 1 hour
Talk to an expert
Questions about this product, compatibility or installation? Our technical team is happy to help.
Approved dealers & installers across the UK, Channel Islands & Gibraltar →- 50% More energy efficient (A-Rated)
- Uses 200W in ECO mode
- No inrush current at start-up
- Can run off an inverter
- Silent operation
- Reverse cycle heat
- 16000 BTU
MPN: SCU16VFD-E
Sheet 01 — Specification
Specifications
| Cooling Capacity | 16,000 BTU/h |
|---|---|
| Power Type | AC |
| Max Current | 4.8A |
| Energy Rating | A |

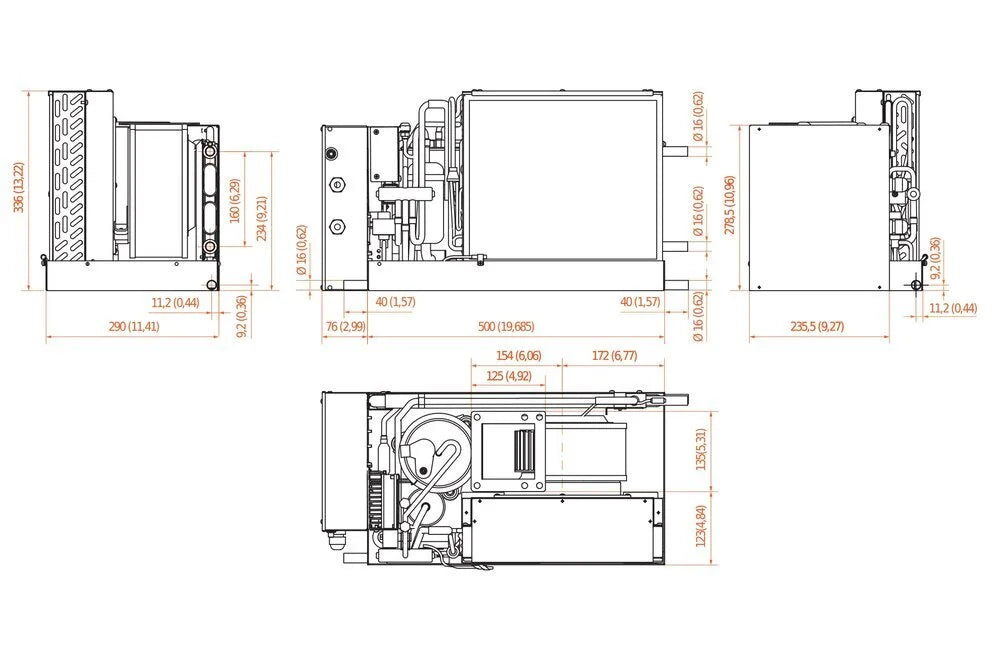

| Dimensions (W x D x H) | 500 × 290 × 334mm (excludes electrical panel) |
| Weight | 27kg |
Sheet 02 — Precision Control
Precision Control
Adjustable Air Outlet
Removable Electrical Panel
Touchscreen Control Panel
Sheet 03 — Performance
Capacity & Dimensions
Cooling Capacity
Dimensions
Sheet 05 — Installation
How Will You Install Your System?
Self-Installation & Independent Engineers
Sheet 06 — On Board Comfort
On Board Comfort
50% More Efficient!
The new Frigomar BLDC series of air conditioning units are up to 50% more efficient compared to start/stop units. The compressor starts at very slow speeds with no peak current demand and accelerates quickly up to max speed. As room temperature approaches set point the compressor slows down keeping a constant temperature.
Ideal Size
The Frigomar SCU16VFD offers a quiet and very compact solution for boat air conditioning. The Frigomar SCU16VFD is a popular size for cooling larger cabins like the saloon of a sailing boat in the 45-50’ range or a power boat in the 38-45’ range. Complete with digital climate control and featuring reverse cycle heating, the Frigomar SCU16VFD will automatically adjust the temperature of the outlet air to compensate for the change from a hot day to a cool night.
Reliable
Variable frequency inverter drive technology eliminates start/stop cycles, increasing energy efficiency and eliminating sharp fluctuations in air temperature and power demand. This also results in increased life span and enhanced comfort on board, when compared with older start/stop technology.
Comfortable Climate
The Inverter air conditioner finely adjusts its capacity according to thermal loads in order to maintain desired temperature without fluctuations. This combined with silent operation enables higher comfort compared to start/stop units.
Sheet 07 — The Manufacturer
About Frigomar
Frigomar are the market leaders in the development and manufacture of inverter drive technology in marine air conditioning. Their BLDC variable frequency drive technology is unique in being “sensor less”. This innovation has enabled Frigomar to develop the most energy efficient (A-rated) marine air conditioning system, with the most comprehensive system management available on the market today.
Frigomar’s technology is not just a modification or enhancement to something that already exists; it is entirely new and ground breaking. It is revolutionising the world of boat building when considering power requirements and specifying generator size.
