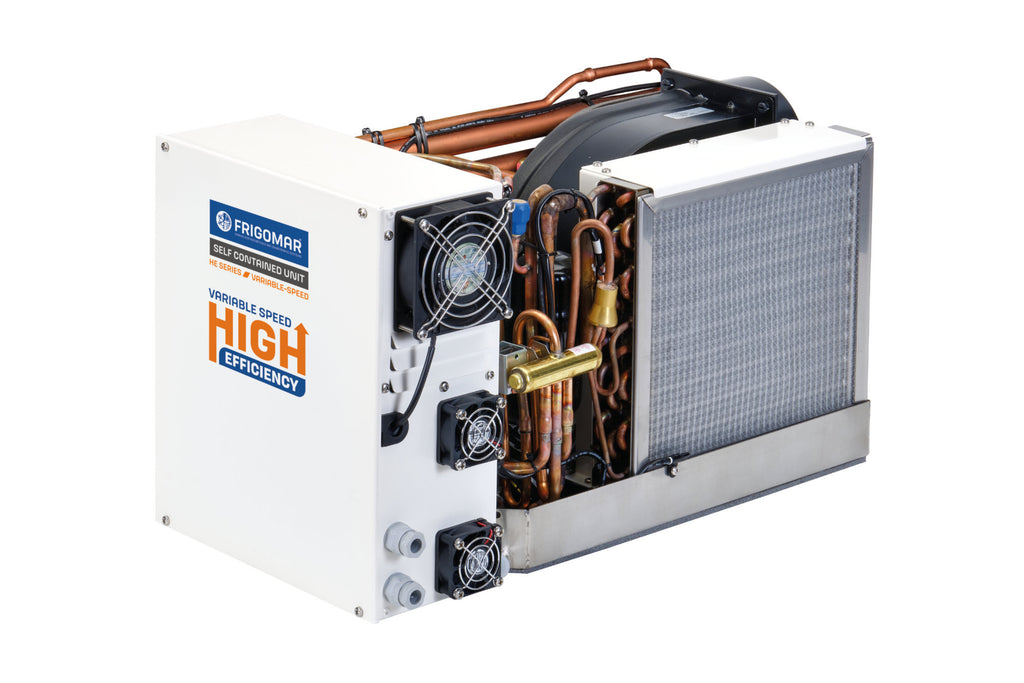

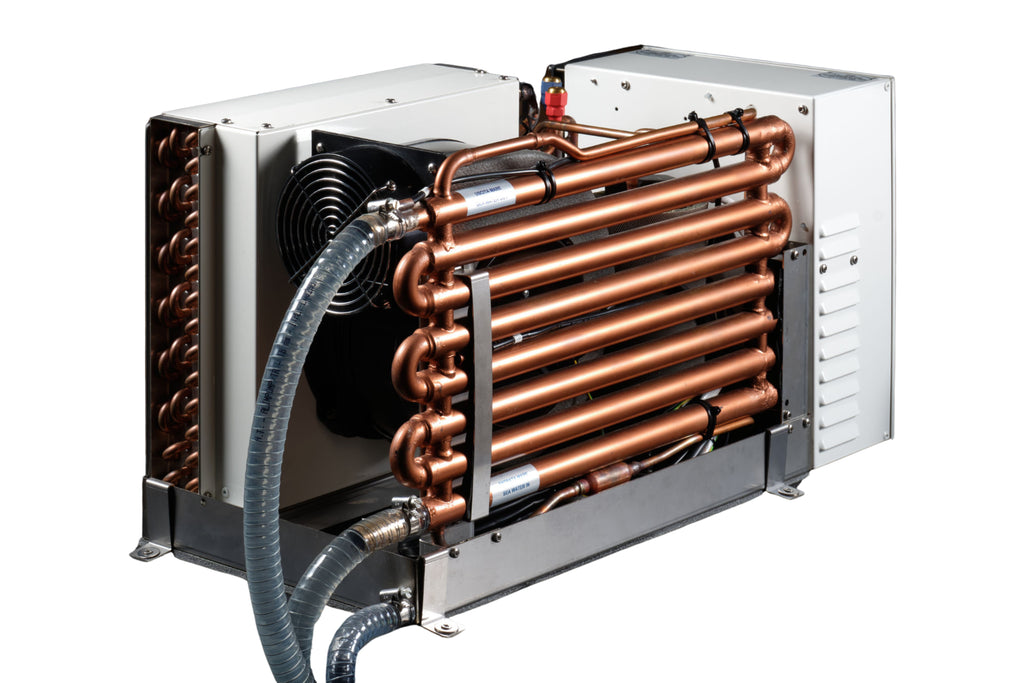

Frigomar SCU07VFDHE DC
Frigomar SCU07VFDHE DC
- New - High Efficiency model, 15% increased efficiency
- Available in 12VDC, 24VDC or 48VDC
- 50% More energy efficient (A-Rated)
- Uses 155W in ECO mode
- No inrush current at start-up
- Silent operation
- Reverse cycle heat
- 7000 BTU
Specifications
| Cooling Capacity | 7,000 BTU/h |
|---|---|
| Power Type | 12V/24V/48V DC |
| Max Current | 39.2A/18.3A/9.2A |
| Energy Rating | A |
| Dimensions (L x W x H) | 433 × 260 × 282mm (excludes electrical panel) |
| Weight | 24.5kg |
Precision Control
Adjustable Air Outlet
Removable Electrical Panel

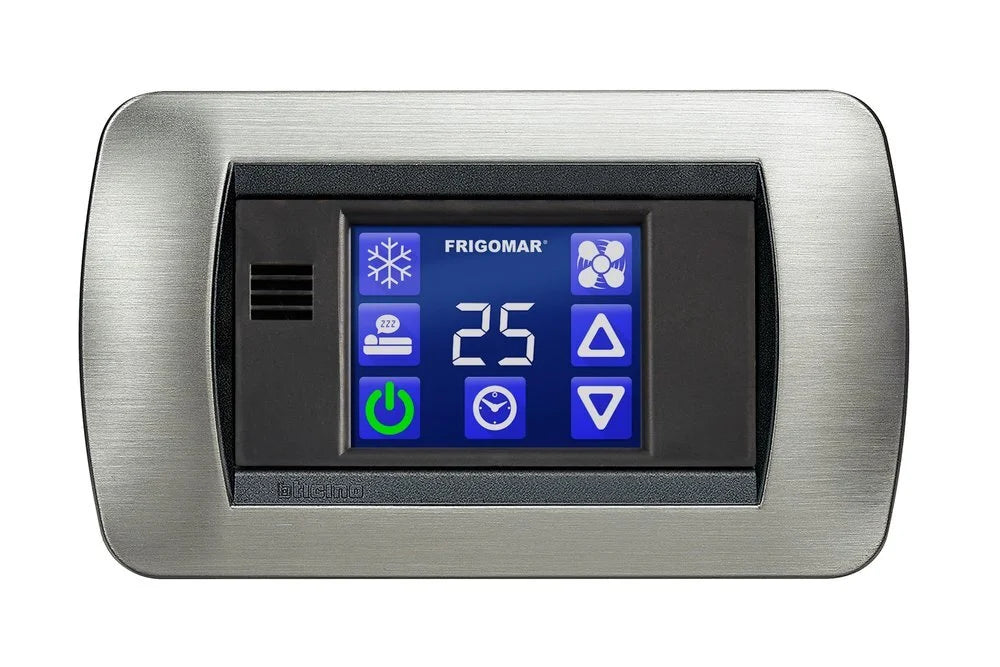

Touchscreen Control Panel
Capacity & Dimensions
How Will You Install Your System?
Whether you prefer a hands-off professional installation or plan to manage the fit-out yourself, we are here to support you every step of the way.
Approved Installation Partners
We work with a trusted network of professional marine engineers across the UK, Channel Islands, and Gibraltar. Visit our Approved Dealers & Installers page to find a installer near you.
Self-Installation & Independent Engineers
Tackling the project yourself or using your preferred engineer? You are never on your own. Our dedicated in-house technical team is just a phone call or email away, ready to provide expert advice and troubleshooting support during your installation and well beyond.
On Board Comfort
50% More Efficient!
The new Frigomar BLDC series of air conditioning units are up to 50% more efficient compared to start/stop units. The compressor starts at very slow speeds with no peak current demand and accelerates quickly up to max speed. As room temperature approaches set point the compressor slows down keeping a constant temperature.
Ideal Size
The SCU07VFDHE is the smallest air conditioning unit in the range and offers a quiet and compact solution for on board comfort. Digital climate control and reverse cycle heating are included in the price, automatically keeping you cool when it heats up outside and warm if the temperature drops at night. The SCU07VFDHE is often used for cooling a small cabin such as a forward V-berth or to cool two small cabins, depending on the size and the layout of the vessel.
Reliable
Variable frequency inverter drive technology eliminates start/stop cycles, increasing energy efficiency and eliminating sharp fluctuations in air temperature and power demand. This also results in increased life span and enhanced comfort on board, when compared with older start/stop technology.
Comfortable Climate
The Inverter air conditioner finely adjusts its capacity according to thermal loads in order to maintain desired temperature without fluctuations. This combined with silent operation enables higher comfort compared to start/stop units.
About Frigomar
Frigomar are the market leaders in the development and manufacture of inverter drive technology in marine air conditioning. Their BLDC variable frequency drive technology is unique in being “sensor less”. This innovation has enabled Frigomar to develop the most energy efficient (A-rated) marine air conditioning system, with the most comprehensive system management available on the market today.
Frigomar’s technology is not just a modification or enhancement to something that already exists; it is entirely new and ground breaking. It is revolutionising the world of boat building when considering power requirements and specifying generator size.
