Cristec YPOWER 12-16
Cristec YPOWER 12-16

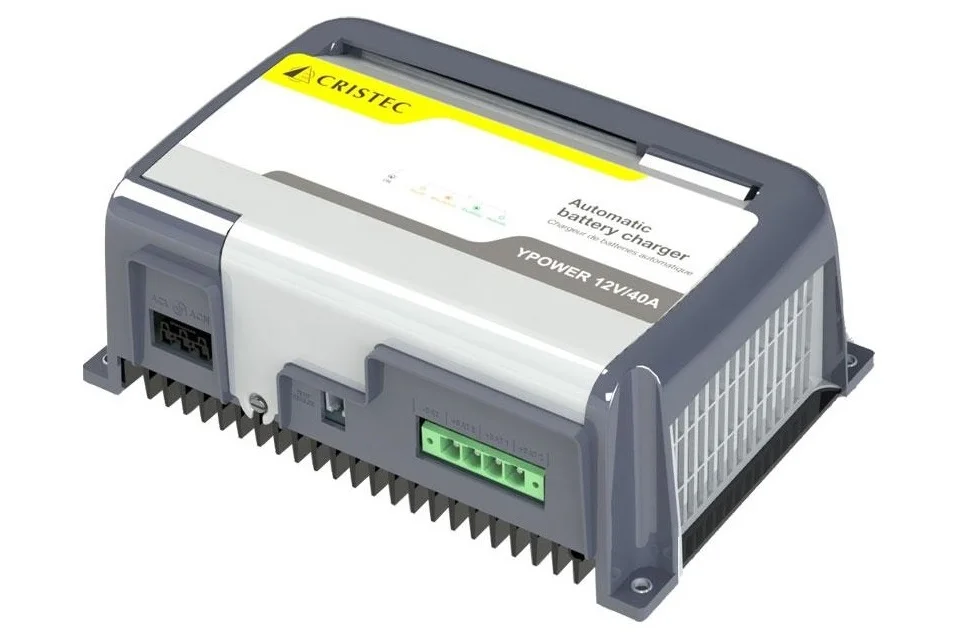

The Cristec YPOWER 12-16 battery charger features high quality power electronics for optimum performance at high temperatures and for silent operation - no fans are required. Fully-automatic 5-stage charging means your YPOWER can be left permanently connected to your batteries to maintain their charge. These state-of-the-art chargers can accept a wide input power supply range, have PFC (power factor correction) and modern HF technology to increase performance and efficiency.
The Professional Choice
The YPOWER range is the 5th generation of HF chargers developed by CRISTEC. Features include automatic sensing and distribution of 100% of available charging to any one bank or a combination of up to 3 banks. The CRISTEC YPOWER chargers accept a wide input power supply range, enabling you to connect to shore power in marinas around the world.
CRISTEC chargers are designed to work with all battery types. Their simple dip-switch programming allows you to select the right charge curves to suit your batteries; gel, AGM, flooded, Calcium-Lead, Lithium… This ensures your batteries receive the correct charge and are kept in excellent condition.
YPOWER chargers can be installed in parallel and work together to increase output. For example, if you have an existing YPOWER 12-40 charger and want to increase your charging capability to 60A, simply add a YPOWER 12-20. Up to 4 YPOWER chargers can be banked together.
Boost : charges batteries to 80% of full charge
Absorption : slowly completes remaining charge to 100%
Floating : maintains battery charge
Automatic refresh : prevents sulphation and revitalizes batteries, selectable by internal switch
Reboost : new automatic Boost phase if battery demand needs it
No fans on all models except 12V/60A & 24V/30A

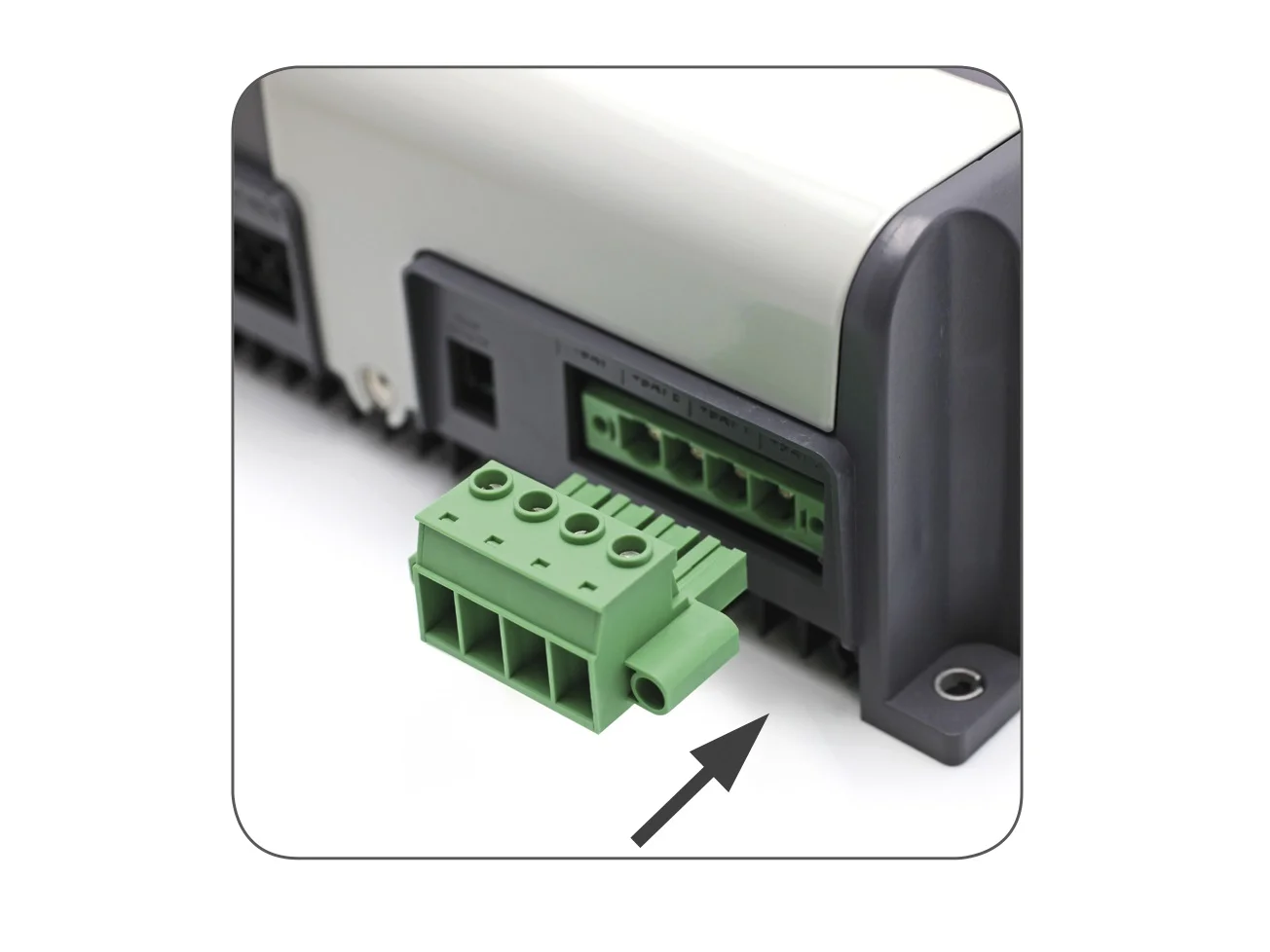

Plug & Play
Quick & reliable installation
Fully automatic 5-Stage charging
Rated charge up to +60 degrees C with no de-rate
YPOWER Touch Display
The CRISTEC YPOWER Touch Display shows real time data about the battery’s charging and the charger’s AC input power, including battery voltage (up to 3 banks), charger current, charger state (Boost, absorption, Floating), battery room temperature (if optional temperature probe mounted), AC input network voltage and frequency. The system will monitor data and automatically trigger an acoustic and visual alarm for low battery voltage (up to 3 banks), high battery voltage (up to 3 banks), over-temperature in battery room (if optional temperature probe mounted), low AC input voltage, low AC input frequency. The screen brightness is adjustable with night/day mode.
CRISTEC have specialised in power conversion since 1983 and with over 100,000 units in use around the world, they are the market leader in modern high performance, switch mode battery chargers. Manufactured in Quimper, Brittany, CRISTEC have an extensive R & D department backed up by a specialist testing facility to ensure product ranges meet demanding technical specifications. CRISTEC chargers are fitted as standard equipment to Jeanneau, Beneteau and Bavaria yachts amongst others. They are also used in many military and vehicle applications due to their durability and reliability in tough environments. With a distribution network spanning over 50 countries, you can be assured of quality service around the globe.
Voltage - 12V
Charge Output (A) - 16
No. of Outputs - 3
