Cristec RCB+ 50A

131-0591

£116.97 Excl. VAT

1 in stock

Free UK delivery on orders over £100

Order before 1pm for same-day dispatch

View delivery information

Pickup available at Advance Yacht Systems - Romsey

Usually ready in 1 hour

Talk to an expert

Questions about this product, compatibility or installation? Our technical team is happy to help.

+44 (0)1794 523 900 info@advanceyacht.co.uk

Approved dealers & installers across the UK, Channel Islands & Gibraltar →

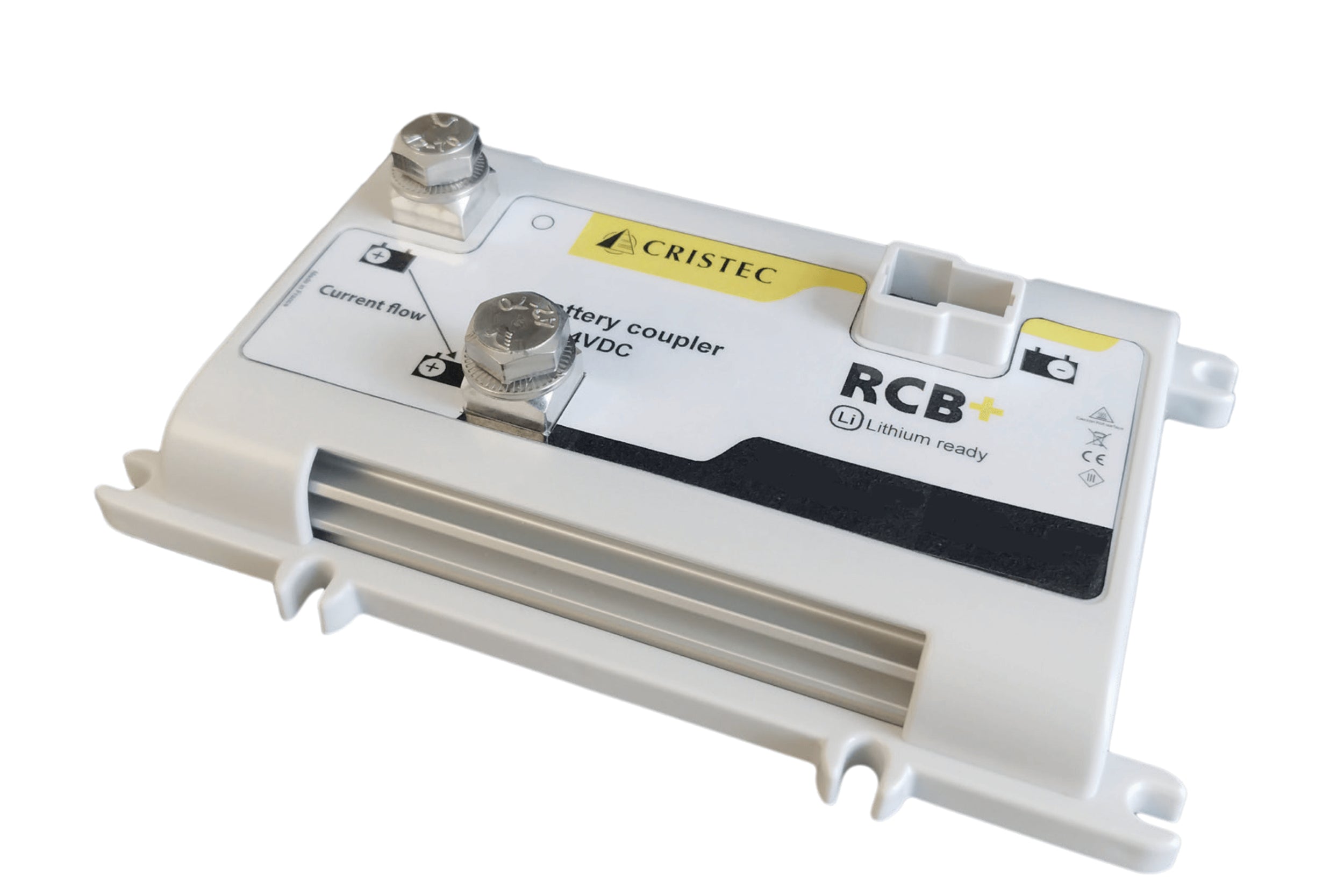

The Cristec RCB+ 50A is a battery relay that safely manages current draw to a lithium (LiFePO4) service bank, protecting a standard marine alternator from overworking, at a fixed 50A current limit.

MPN: RCB-50A

Sheet 01 — Specification

Specifications

Voltages	12VDC or 24VDC
House Battery Current (A)	50A

Spec Sheet

Sheet 02 — Overview

Safeguard Your Alternator When Charging Marine Lithium Batteries

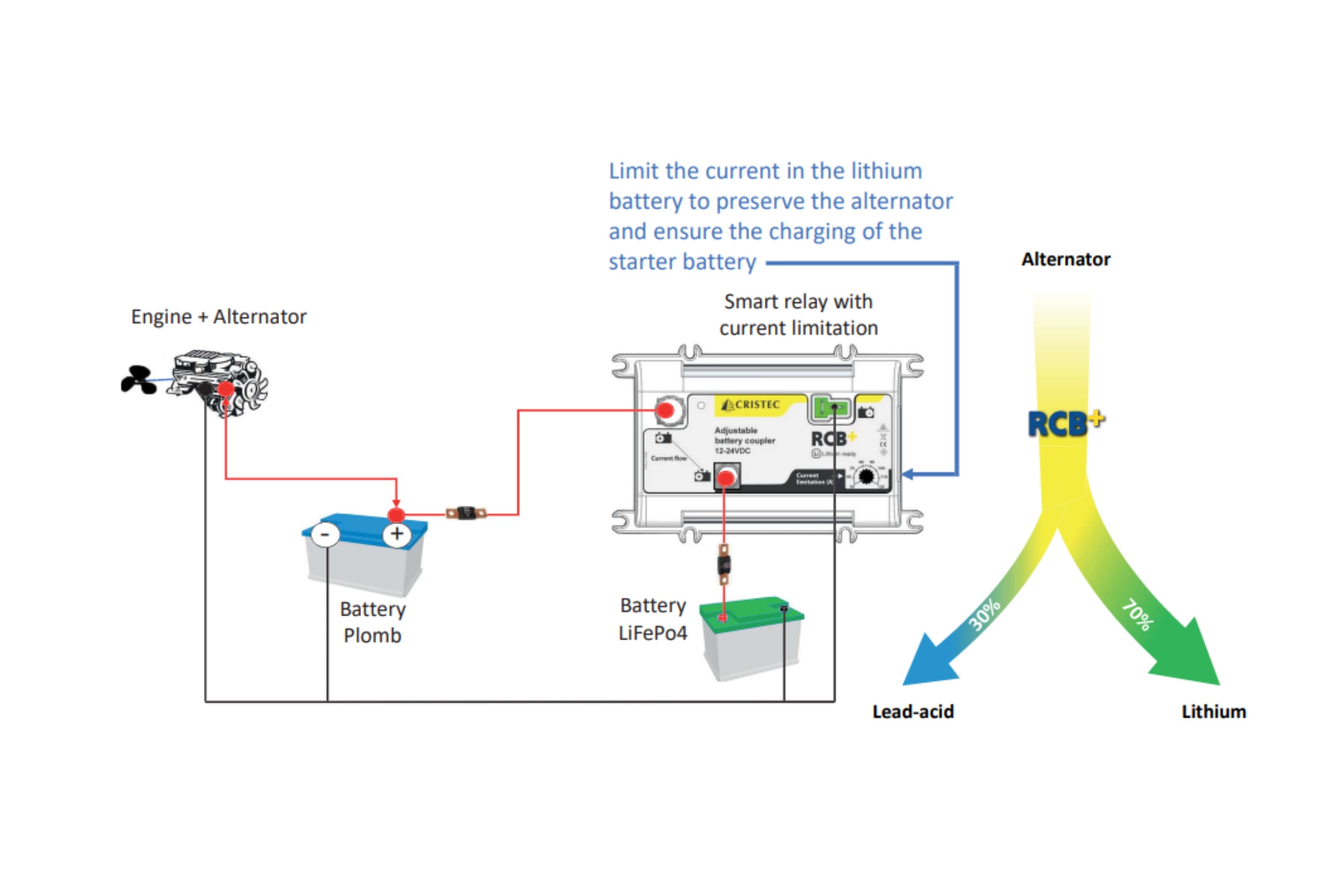

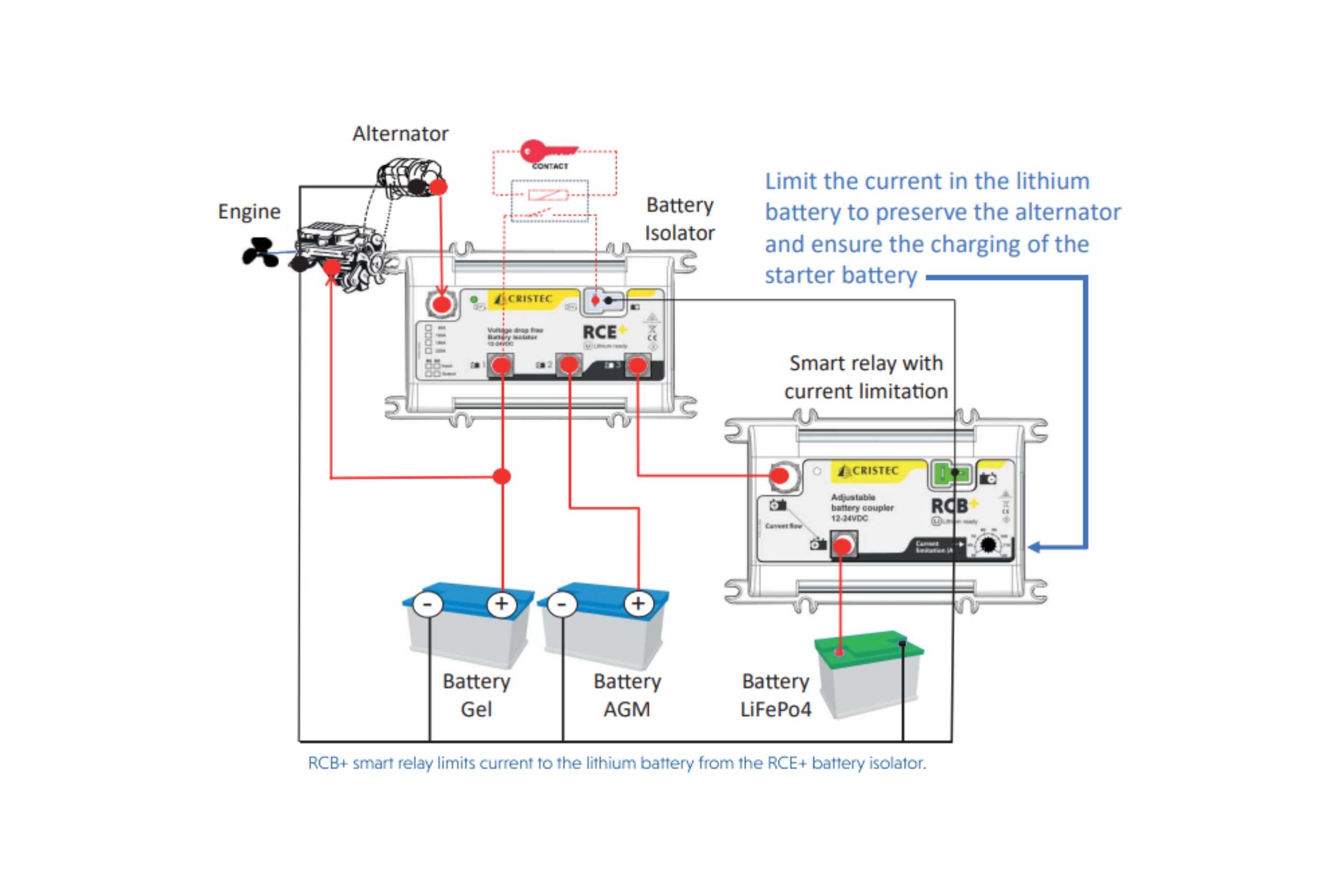

This unique charge relay can be used with heavy duty alternators up to 200A. Its innovating technology based on low frequency switching mode offers stabilized output charge current and protection against reverse voltage to avoid damages to alternators. We recommend keeping at least 30% of the alternator current to charge the starting battery.

Sheet 03 — The Manufacturer

Cristec

CRISTEC have specialised in power conversion since 1983 and with over 100,000 units in use around the world, they are the market leader in modern high performance, switch mode battery chargers. Manufactured in Quimper, Brittany, CRISTEC have an extensive R & D department backed up by a specialist testing facility to ensure product ranges meet demanding technical specifications. CRISTEC chargers are fitted as standard equipment to Jeanneau, Beneteau and Bavaria yachts amongst others. They are also used in many military and vehicle applications due to their durability and reliability in tough environments. With a distribution network spanning over 50 countries, you can be assured of quality service around the globe.
