The Paguro 5000 is no longer in production, but we still supply the service kits and spare parts that keep it running. Find the right kit below, or see the current Paguro that replaces it.
- Home
- Old Paguro Generators
- Paguro 5000
Sheet 01 — Specification
Specifications
| Output | 5.0 kVA |
|---|---|
| Voltage | 230V @ 50Hz |
| Speed | 3000 rpm |
| Engine | Farymann |
| Fuel | Diesel |
| Weight | 83 kg |
| Dimensions (L × W × H) | 600 × 340 × 525 mm |
Spare Parts
Common Paguro 5000 parts
Parts for the Paguro 3000, 4000 and 5000 are listed together. Send us the model and serial number from your generator's rating plate and we'll confirm the right part.
Paguro 3000–5000 PartsReplacement
Replacing a Paguro 5000
£6,695.00 Excl. VAT
| Specification | Paguro 5000 | Paguro 5.5 SY |
|---|---|---|
| Continuous output | 5.0 kVA | 5.0 kVA |
| Engine | Farymann | YANMAR L100 |
| Speed | 3000 rpm | 3000 rpm |
| Weight | 83 kg | 110 kg |
| Dimensions (L × W × H) | 600 × 340 × 525 mm | 660 × 470 × 570 mm |

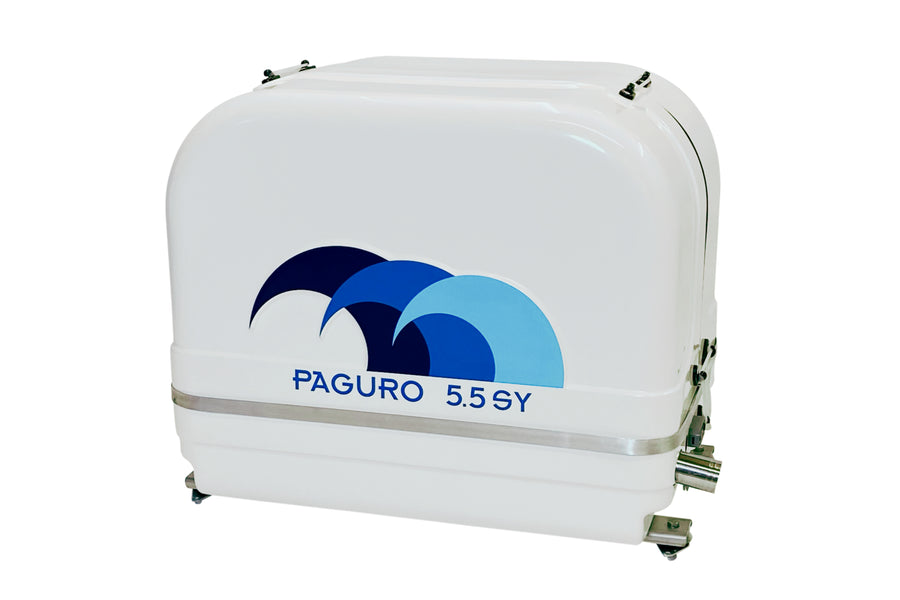

The Paguro 5.5 SY matches the 5000's continuous output with a brushless synchronous alternator and a larger YANMAR L100 engine. It is bigger all round, so check the space available.
Send us your current mounting details and we'll confirm the fit.
Sold under other names
Generators from this Paguro range were also built for other brands, including Mastervolt, HFL, Dolphin (GenACis), Westerbeke and Sole. If yours carries one of those names, send us the details from its rating plate and we'll match the parts.
Need a hand?
Not sure which kit or part you need? Send us the model and serial number from your generator's rating plate and we'll confirm it.
