Paguro 22 EK

Paguro 22 EK


Free UK Delivery
Please Note That This Item Has A 2-3 Week Delivery Time

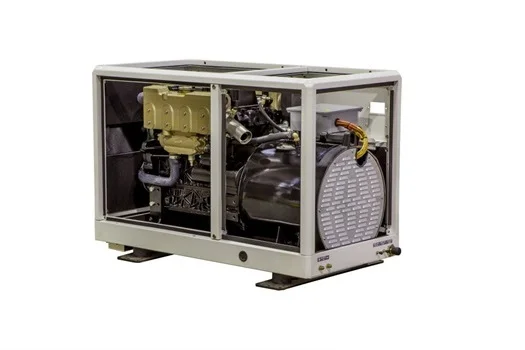

The Paguro 22 EK marine generator is the most powerful generator in the Paguro range. Using the latest four cylinder Lombardini (Kohler) KDI 2504-M Common Rail engine, it is a smooth, quiet running generator and a great choice for larger yachts and commercial vessels with significant power requirements.

Add To Cart

The Paguro Difference



Paguro 22 EK is the ideal for supplying a combination of equipment such as multiple air conditioning units, a large watermaker and more.

Reliable Power

The combination of AVR regulated oversized watercooled brushless windings and a Kohler (Lombardini) engine will give you the power you need and the peace of mind you want.

Independence  With a Paguro 22 EK on board you can enjoy the full potential of your yacht. With enough power to operate all the systems usual on a large yacht, just sit back and relax.


With a Paguro 22 EK on board you can enjoy the full potential of your yacht. With enough power to operate all the systems usual on a large yacht, just sit back and relax.


Peace & Quiet

Designed by one of the pioneers of encapsulated generator technology, the Paguro 22 EK is cocooned in a 4- stage soundproof capsule, keeping noise as low as possible. Two sets of anti-vibration feet ensure that noise transmitted by vibration is kept to a minimum, resulting in a smooth running and very quiet generator.


Simple Ownership


Easy to Operate

Your Paguro comes complete with an easy to read remote control panel with power monitor and 15m cable.


Powered By Lombardini

The Paguro 22 EK is the latest in the range of 1500rpm generators from VTE. Based on their tried and trusted design that has been in successful production for many years, the Paguro 22 EK uses the new Lombardini (now called Kohler) KDI2405-M fresh water-cooled engine with common rail direct injection technology meeting Tier 4 Final/ARB, Stage IIIB emissions compliance. The popularity of the Lombardini (Kohler) & Paguro brands around the globe ensures that wherever you are in the world, you won’t be far away from spares and servicing support, giving you the freedom to cruise with peace of mind.


Global Support

With distributors located in 74 countries world-wide, Paguro generators offer industry leading global support


Superior Warranty

5 year warranty exclusive to leisure customers of Advance Yacht*

* Full details available on request

UK Support

Our team here at Advance Yacht Systems have built a comprehensive knowledge base covering all aspects of the Paguro generator range, enabling us to deliver unrivalled technical support to our customers. Our commitment to providing industry leading support is backed up by us being voted British Marine Electrical & Electronics Dealer of the Year in 2017 by our customers.

We also offer the largest range of generator spares of any UK marine generator distributor, available to buy online for delivery to over 50 countries worldwide.


Volpi Tecno Energia

Manufactured by Volpi Tecno Energia the Paguro brand is one of the longest established compact marine generators and is a well known firm favourite around the world. VTE focus on producing quiet, compact marine diesel generators that are durable in the marine environment and are simple to operate and maintain. Paguro generators are manufactured using proven techniques and high grade materials to ensure a long life in the marine environment. The factory is located in Udine in northeast Italy near Trieste, home to the Barcolana Sail Race, a spectacular annual race that is the largest sailing event in Europe.




Output - 22.0kVA

Voltage - 230V @ 50Hz

Speed - 1500rpm

Engine - Lombardini (Kohler) KDI 2504-M

Fuel - Diesel

Sound - 53 dB(A) @ 7m

Weight - 620kg

LxWxH - 1224x710x828


Sound Capsule
Remote Panel & Harness
Ext Anti-Vibe Mounts


Installation Kits


We also supply comprehensive installation kits, put together using the same high quality parts we use in our professional marine installations. They include the known parts necessary to complete an installation, without you or your installer having to spend time sourcing additional parts.  Each system group of parts is individually packed and labelled to make it easy; just open the box and begin!

Installation Kit
from 690.00

Installation Service

Based on the South Coast, our team carry out professional installations to the very highest of standards. With many years experience on a variety of vessels we deliver well thought out installations, optimising use of space and minimising loss of useful storage. We take the greatest care of your boat during the installation and your boat will be handed back to you clean and tidy. We offer a free survey and a fixed price, so there are no hidden extras.

We also have a network of professional installers around the UK, please contact us for details of your local installer.

Self Installation or Own Engineer

Our technical team are only a phone call or email away and are always happy to support you or your own engineer with your installation and beyond. You will still be eligible for our extended warranty - 5 years - at no additional cost!
