Cristec YPOWER+ 12-40
The Cristec YPOWER+ 12-40 battery charger features high quality power electronics for optimum performance at high temperatures and for silent operation - no fans are required. Fully-automatic 5-stage charging means your YPOWER+ can be left permanently connected to your batteries to maintain their charge.
The Professional Choice
Latest Technology
Features include automatic sensing and distribution of 100% of available charging to any one bank or a combination of up to 4 banks. The CRISTEC YPOWER chargers accept a wide input power supply range, enabling you to connect to shore power in marinas around the world.
Optimum Charging
CRISTEC chargers are designed to work with all battery types. Their simple dip-switch programming allows you to select the right charge curves to suit your batteries; gel, AGM, flooded, Calcium-Lead, Lithium… This ensures your batteries receive the correct charge and are kept in excellent condition.
Paralleling
YPOWER chargers can be installed in parallel and work together to increase output. For example, if you have an existing YPOWER 12-40 charger and want to increase your charging capability to 60A, simply add a YPOWER 12-20. Up to 4 YPOWER chargers can be banked together.

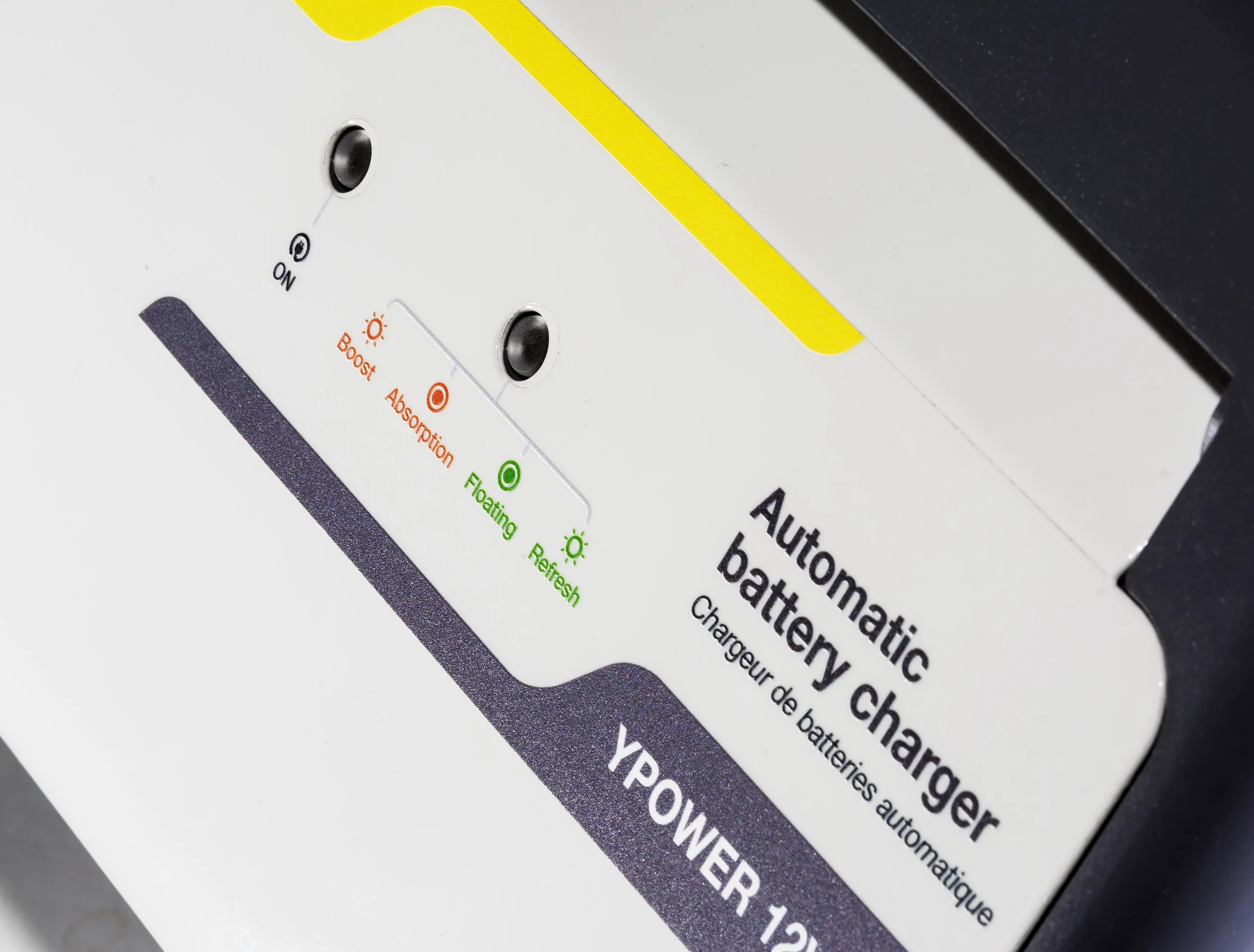

5-Stage Charging
Boost : charges batteries to 80% of full charge
Absorption : slowly completes remaining charge to 100%
Floating : maintains battery charge
Automatic refresh : prevents sulphation and revitalizes batteries, selectable by internal switch
Reboost : new automatic Boost phase if battery demand needs it
Features
Silent Operation
Passivly cooled resulting in silent operation and an optimized lifespan
App Control
Equipped with Bluetooth Low Energy (BLE) for app control
4 independent outputs
Features 4 independent outputs, including one dedicated to the engine battery
High Performance
Rated charge up to +60 degrees C with no de-rate. ISO8846 compliance – Protection against ignition of flammable gases
Specs
Voltage - 12V
Charge Output (A) - 40
No. of Outputs - 4
Fanless - Yes
CAN-BUS - Yes
Cristec
CRISTEC have specialised in power conversion since 1983 and with over 100,000 units in use around the world, they are the market leader in modern high performance, switch mode battery chargers. Manufactured in Quimper, Brittany, CRISTEC have an extensive R & D department backed up by a specialist testing facility to ensure product ranges meet demanding technical specifications. CRISTEC chargers are fitted as standard equipment to Jeanneau, Beneteau and Bavaria yachts amongst others. They are also used in many military and vehicle applications due to their durability and reliability in tough environments. With a distribution network spanning over 50 countries, you can be assured of quality service around the globe.
